AF1AV20FRB20 AEROQUIP MATCHMATE FITTING 1-1/4 FR X -20 H 90 TTC
Click image to enlarge

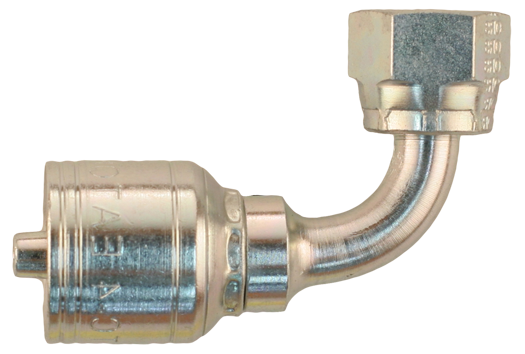

AF1AV20FRB20 AEROQUIP MATCHMATE FITTING 1-1/4 FR X -20 H 90 TTC

Item # AF1AV20FRB20

AEROQUIP MATCHMATE FITTING 1-1/4 FR X -20 H 90 TTC

  • Brand: AEROQUIP HYDRAULICS
Aeroquip MatchMate Fitting 1-1/4 Fr X -20 H 90 Ttc. Hydraulic crimp fitting designed for use in compatible Aeroquip hose assemblies with a secure, durable connection.
Specifications
FITTING SERIES 1AV crimp
END CONNECTION/TYPE ORFS female swivel short drop
FITTING ANGLE 90°
HOSE DASH SIZE/HOSE ID -20 / 1-1/4 in
THREAD/PORT/FLANGE SIZE 1-11/16-12 UN
MATERIAL Carbon steel
FINISH/COMPATIBLE FAMILY Dura-Kote / TTC family
APPLICATION/NOTES N/A
